- Flow
- 18 CFM
- Max pressure
- 145 PSI
- Dryer
- FF
- Tank
- 53 gal

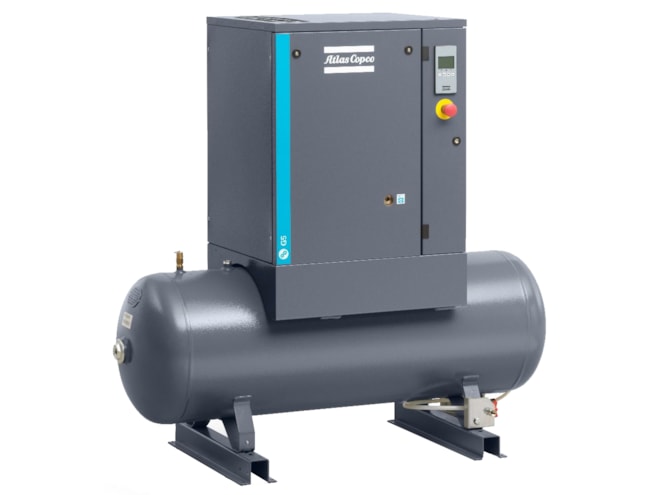

Atlas Copco G2–G7 Rotary Screw Air Compressor
18 CFM · 145 PSI max · Tank mount, 53 gal + dryer (FF) · 208–230/460V 3-phase
Same price for three-phase or single-phase.
Mention part G4 FF-145T · 208–230/460V 3-phase. A live expert confirms sizing and ship date.
Technical specifications
Showing G4 FF-145T · 208–230/460V 3-phaseFlow at each pressure — G4
Flow from Atlas Copco product data; sizes shown as "Call" are quoted by phone. Confirm dimensions on the dimensional drawing.
Compare G2–G7 sizes
Select a row to configure that size.
| HP | Model | CFM @116 | CFM @145 | Tank AP | Tank FF | From | |
|---|---|---|---|---|---|---|---|
| 3 HP | G2 | 13.1 | 9.7 | $7,242.00 | $8,809.00 | $6,552.00 | |
| 5 HP | G4 | 20.1 | 18 | $8,331.00 | $10,166.00 | $7,640.00 | |
| 7.5 HP | G5 | 29.2 | 26.1 | $8,942.00 | $10,924.00 | $8,250.00 | |
| 10 HP | G7 | 36 | 34.1 | $9,600.00 | $11,743.00 | $8,910.00 |
Quiet screw air for the workshop
The Atlas Copco G2 to G7 is a compact 3 to 10 HP rotary screw built to sit where the air is used — quiet from 61 dB(A), rated for continuous duty up to 114°F, with no separate compressor room needed.
Pick a base or 53 gallon tank mount, and AP (compressor only) or FF (Full Feature, with an integrated refrigerant dryer). Every unit carries an IE3 premium-efficiency motor and the Elektronikon Base controller with remote monitoring and service alerts.
Standard features
- IE3 premium-efficiency motor
- Elektronikon Base controller
- Remote monitoring & alerts
- Integrated dryer (FF)
- 53 gal tank option
- Single-phase on G2–G5
- 100% duty to 114°F
- < 5 ppm oil carry-over
Warranty
Atlas Copco factory warranty applies; extended coverage is available through Atlas Copco programs with genuine parts and service.
| Coverage | Term |
|---|---|
| Factory warranty | Atlas Copco standard |
| Extended | Available with genuine parts & service |
Ask a guru for current Atlas Copco warranty terms.
