- Flow
- 140.7 CFM
- At
- 102 PSI
- Motor
- 25 HP
- Speed
- Dual

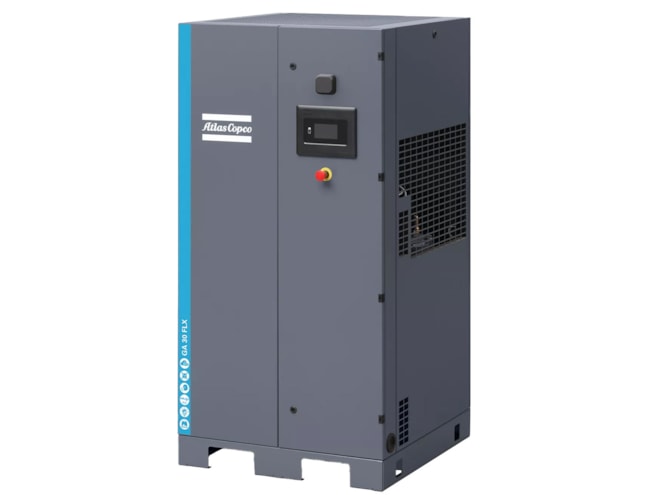

Atlas Copco GA FLX Dual Speed Rotary Screw Air Compressor
140.7 CFM @ 102 PSI · GA18 FLX
Same price either voltage.
Mention part 8153690566. A live expert confirms sizing and ship date.
Technical specifications
Showing 8153690566Rated capacity, footprint and weight from the Atlas Copco online shop for the same part number (or the closest matching configuration).
Compare sizes
Select a row to configure that size.
| HP | Model | CFM @102 | Compressor only | With dryer | From | |
|---|---|---|---|---|---|---|
| 15 HP | GA11 FLX | 75.5 | $18,862.50 | $24,100.62 | $18,862.50 | |
| 20 HP | GA15 FLX | 104.4 | $20,958.75 | $27,009.38 | $20,958.75 | |
| 25 HP | GA18 FLX | 140.7 | $23,055.00 | $30,638.12 | $23,055.00 | |
| 30 HP | GA22 FLX | 162.5 | $25,820.62 | $33,490.00 | $25,820.62 | |
| 35 HP | GA26 FLX | 173.8 | $29,713.00 | $37,776.88 | $29,713.00 | |
| 40 HP | GA30 FLX | 212.2 | $32,953.12 | $41,883.12 | $32,953.12 |
Two speeds for efficiency without full VSD cost
The Atlas Copco GA FLX runs at two speeds, giving much of the efficiency of variable speed at a lower price. Sizes run from 15 to 40 HP with 75.5 to 212.2 CFM at 102 PSI and pressure settings from 58 to 175 PSI.
Every unit has a FASR motor, the Elektronikon Touch controller and SMARTLINK remote monitoring. Add an integrated dryer and filters for clean, dry air straight from the package.
Standard features
- Dual-speed drive
- FASR motor
- Elektronikon Touch
- SMARTLINK remote monitoring
- Integrated dryer & filters option
- 58–175 PSI settings
- Freight quoted by phone
Warranty
Atlas Copco factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Atlas Copco standard |
| Extended | Available with genuine parts & service |
Use genuine Atlas Copco parts and fluid to keep coverage.
