- Capacity
- 10 SCFM
- Connection
- 1/2" NPT
- Voltage
- 115/1/60

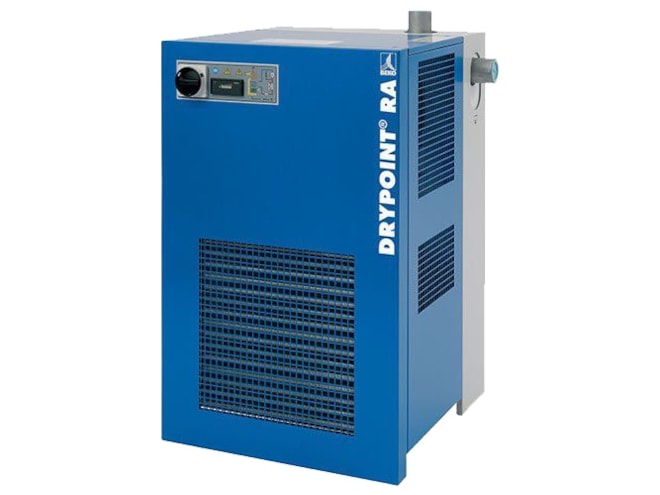

BEKO Technologies DRYPOINT RAc Series Refrigerated Air Dryer
10 SCFM · Timer Drain
Mention part 4068494. A live expert confirms sizing and ship date.
Technical specifications
Showing 4068494Part numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Capacity | Part # | From | From | |
|---|---|---|---|---|
| 10 SCFM | 4068494 | $1,641.00 | ||
| 15 SCFM | 4068496 | $1,755.00 | ||
| 20 SCFM | 4068498 | $1,976.00 | ||
| 35 SCFM | 4068500 | $2,102.00 | ||
| 50 SCFM | 4068503 | $2,448.00 | ||
| 75 SCFM | 4068506 | $2,793.00 | ||
| 100 SCFM | 4068508 | $3,468.00 | ||
| 125 SCFM | 4068510 | $4,028.00 | ||
| 150 SCFM | 4068513 | $4,384.00 | ||
| 175 SCFM | 4068515 | $5,312.00 | ||
| 220 SCFM | 4068517 | $5,692.00 | ||
| 300 SCFM | 4068519 | $8,254.00 | ||
| 375 SCFM | 4068521 | $8,888.00 | ||
| 480 SCFM | 4068523 | $11,447.00 |
Low pressure drop, stable dew point
The BEKO Technologies DRYPOINT RAc Series Refrigerated Air Dryer applies an all aluminum profile for minimal pressure drop, and self-cleans using gravity. The hot gas bypass valve is specifically designed for refrigerant drying, stabilizing the dew point. Each model includes a timer drain as standard.
Saturated, warm compressed air is pre-cooled in the air-to-air heat exchanger. The compressed air is then cooled in the air-to-refrigerant heat exchanger to the required pressure dew point. Re-entrainment of separated water droplets is prevented by the large condensate collection chamber and reduced velocity. The timer drain then discharges the accumulated condensate from the dryer, and the cold and dried compressed air leaves the dryer via an air-to-air heat exchanger, reducing the relative humidity and recovering the cooling capacity by up to 60%.
Standard features
- 10 to 480 SCFM capacity
- 3/8 to 2 1/2" NPT connection
- 115/1/60 or 230/1/60 voltage
- .19 to 2.3 kW power consumption
- 1 micron pre-filtration required, .01 mi
- Pressure rating: 232 PSIG (10–50 SCFM),
- 130°F maximum inlet air temperature
Warranty
BEKO factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | BEKO standard |
| Service | Local service available on all brands |
Use genuine BEKO parts and follow the maintenance schedule to keep coverage.
