- Capacity
- 30–40 CFM
- Max pressure
- 150 PSI
- Hydraulic
- 8–12 GPM
- Type
- V4 piston
BOSS Industries Truck Mounted Air Compressors

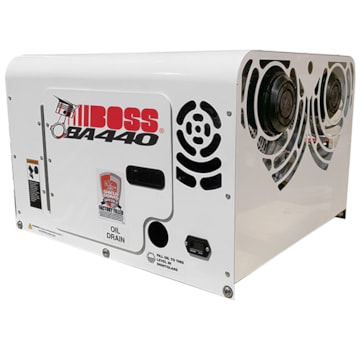

BOSS Industries BA440 Hydraulic Piston Air Compressor
Mention part 20013-006 [30 CFM] [8 GPM]. A live expert confirms sizing and ship date.
Technical specifications
Showing 20013-006 [30 CFM] [8 GPM]Option prices are added to the base price shown.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Capacity | Power | Build | From | From | |
|---|---|---|---|---|---|---|
| BA440 hydraulic piston | 30–40 CFM | Hydraulic | Piston | $6,524.34 | ||
| Bullet G 30 | 30 CFM | Kohler CH440 gas | Rotary screw | $7,733.44 | ||
| Bullet G 70 | 70 CFM | Kohler CH730 gas | Rotary screw | $12,335.16 | ||
| Infinity 35 hydraulic | 35 CFM | Hydraulic | Rotary screw | $8,015.75 | ||
| Infinity 80 hydraulic | Up to 80 CFM | Hydraulic | Rotary screw | $10,783.08 | ||
| Infinity 100 hydraulic | Up to 100 CFM | Hydraulic | Rotary screw | $12,693.83 | ||
| Infinity 185 hydraulic | Up to 185 CFM | Hydraulic | Rotary screw | $15,501.84 | ||
| Infinity 375 hydraulic | Up to 375 CFM | Hydraulic | Rotary screw | $28,156.46 |
BOSS Industries Truck Mounted Air Compressors
The BOSS Industries BA440 hydraulic piston air compressor is the ideal solution for mechanics trucks and tire service professionals. The aluminum, single stage, V4, pressure and splash lubricated reciprocating air compressor is the core of the system, with lighter weight and higher thermal efficiency than cast iron compressor assemblies. The BA440 includes an internal oil pump for increased lubrication over splash-only compressors.
All routine maintenance is easy and accessible without removing the canopy. Outputs range from 8 GPM to 12 GPM to meet your demands.
Standard features
- 150 PSI max pressure delivery
- 2400 PSI max hydraulic pressure
- 12 GPM hydraulic flow at 1650 RPM
- Pressure lubricated oil pump with splash lubrication
- Integrated compressor hydraulic cooler
- Low oil level and pressure shutdown
- SAE 10 (supply) and SAE 16 (return) port sizes
- Auto start/stop
- Auto head unloader
- Intermittent duty cycle
Warranty
BOSS Industries factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | BOSS Industries standard |
| Service | Local service available on all brands |
Use genuine BOSS Industries parts and follow the maintenance schedule to keep coverage.
