- Capacity
- 110 CFM
- Engine
- 25 HP Kubota
- Emissions
- Tier 4 Final
- Containment
- 110%
Chicago Pneumatic CPS Portable Diesel Air Compressors

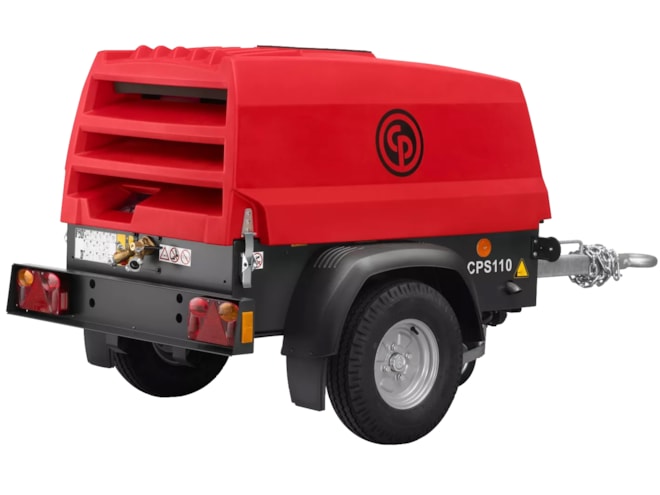

Chicago Pneumatic CPS 110 Portable Rotary Screw Air Compressor
Mention part CPS 110 KD8 T4F. A live expert confirms sizing and ship date.
Technical specifications
Showing CPS 110 KD8 T4FOption prices are added to the base price shown.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Capacity | Power | Build | From | From | |
|---|---|---|---|---|---|---|
| CPS 110 | 110 CFM | 25 HP Kubota diesel | Tow-behind | $16,540.59 | ||
| CPS 185 KoD | 185 CFM | 49 HP Kohler diesel | Tow-behind | $26,323.92 | ||
| CPS 400 | 350–375 CFM | 134 HP diesel | Tow-behind | $70,106.67 |
Chicago Pneumatic CPS Portable Diesel Air Compressors
The Chicago Pneumatic CPS 110 portable diesel rotary screw air compressor is a single-stage, oil-injected rotary screw air compressor powered by a liquid-cooled, three-cylinder Kubota diesel engine. The unit pairs a C67 screw element with a Kubota D902 engine that meets Tier 4 Final emission standards.
An undercarriage with fixed towbar and pintle eye is standard, with DOT-approved road lighting.
Standard features
- Kubota D902 Tier 4 Final 25 HP mechanical diesel engine (muffler only) with starter protection
- C67 screw element airend
- 110% spill-free containment with remote drains
- Thermostatic bypass valve; anti-airlock fuel lines for reliable starting
- Electrical shutoff switch
- Heavy-duty polyethylene canopy; base frame with 3-layer anti-corrosion paint
- Easy-access filters and fluids; spin-on separator filter
- DOT towing package: road lights (4-way flat plug), 3" pintle hitch, torsion axle, VIN, adjustable jack stand, no brakes
Warranty
Chicago Pneumatic factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Chicago Pneumatic standard |
| Service | Local service available on all brands |
Use genuine Chicago Pneumatic parts and follow the maintenance schedule to keep coverage.
