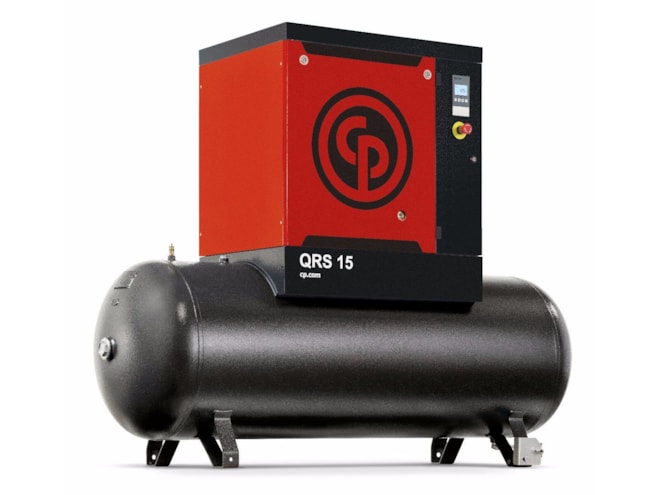

Chicago Pneumatic QRS 10 HP rotary screw air compressor, Tank mount, 120 gal Shown: QRS 15 tank mount. Size and tank vary by model.
Flow
40 CFM
Pressure
125 PSI
Dryer
No
Warranty
5 yr
Chicago Pneumatic · Part QRS 10 125 TM

Chicago Pneumatic QRS Rotary Screw Air Compressor

40 CFM @ 125 PSI · Tank mount, 120 gal · 208–230/460V 3-phase

Horsepower
Package
Pressure (PSI)
Electrical

Single-phase is offered on 3–7.5 HP only.

$9,957.00
Freight quoted by phoneCall for Availability
Call to order · 866-203-9939

Mention part QRS 10 125 TM. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing QRS 10 125 TM

Performance

Model QRS 10
Motor 10 HP
Free air delivery 40 CFM @ 125 PSI
Working pressure 125 psig
Drive Belt drive
Cooling Air-cooled

Electrical & controls

Voltage 208–230/460V 3-phase · 60 Hz
Main motor TEFC
Control Electronic controller, load / unload
Starter Integrated
Enclosure Sound-insulated canopy
Duty 100% continuous

Package

Configuration Tank mount, 120 gal
Air treatment None — add a dryer
Receiver 120 gal ASME horizontal
Dimensions See dimensional drawing
Weight See dimensional drawing
Warranty 5 years (terms apply)

Flow at each pressure — 10 HP

125 PSI
40 CFM
150 PSI
35.2 CFM

Flow per Chicago Pneumatic ratings. Dimensions and weight are on the dimensional drawing — call for the drawing for your configuration.

Compare QRS sizes

Select a row to configure that size.

HP CFM @ PSI Receiver Electrical From Select
3 HP 9.8 @150 60 gal 3-ph or 1-ph $6,024.00
5.5 HP 18.1 @150 60 gal 3-ph or 1-ph $6,815.00
7.5 HP 26.1 @150 60 gal 3-ph or 1-ph $7,801.00
10 HP 40 @125 / 35.2 @150 120 gal 3-ph $9,697.00
15 HP 56 @125 / 51 @150 120 gal 3-ph $10,388.00
20 HP 82 @125 Base only 3-ph Call
25 HP 99.4 @125 Base only 3-ph $16,802.00
30 HP 117 @125 Base only 3-ph $21,691.00

Compact rotary screw, ready to run

The Chicago Pneumatic QRS is a complete, compact rotary screw package from 3 to 30 HP. The 3 to 15 HP units come base mounted or on a 60 or 120 gallon ASME receiver, with an integrated refrigerated dryer available, so you get clean, dry air out of one footprint.

Single-phase power is available on 3, 5.5 and 7.5 HP — ideal for shops that are replacing a piston compressor without running three-phase service. Chicago Pneumatic backs the QRS with a 5-year warranty.

Standard features

  • Complete plug-and-play package
  • Optional integrated dryer
  • 60 or 120 gal ASME receiver
  • Single-phase on 3–7.5 HP
  • Sound-insulated canopy
  • Electronic controller
  • Continuous duty
  • 5-year warranty

Warranty

Chicago Pneumatic warranty terms apply. A guru will send the full warranty document with your quote.

Coverage Term
Package 5 years (terms and conditions apply)
Parts & fluid Use genuine Chicago Pneumatic parts

Per Chicago Pneumatic QRS literature.
