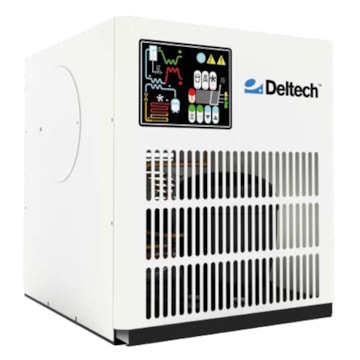

Deltech DPRB Dryer
Capacity
7 SCFM
Connection
3/8" MNPT
Voltage
115/1/60
Warranty
5-yr
Deltech · Part DPRB7-A

Deltech DPRB Series Non-Cycling Refrigerated Air Dryer

7 SCFM

Capacity (SCFM)
Filter Package
$1,210.40
Freight quoted by phoneConfigured to order
Call to order · 866-203-9939

Mention part DPRB7-A. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing DPRB7-A

Configuration

Capacity 7 SCFM
Connections 3/8" MNPT
Voltage 115/1/60
Filter Package None
Part number DPRB7-A

Highlights

7 to 1200 SCFM capacity
Consistent 50°F (+10°C) pressure dew point
200 PSIG max inlet air pressure
120°F max inlet air temperature
Heat exchanger: copper coil (7–15 SCFM); aluminum 3-in-1 with built-in separator (25–50 SCFM); stainless steel cross flow (75–1200 SCFM)
115/1/60 (7–150 SCFM) or 460/3/60 (200–1200 SCFM)
Pneumatic float drain (7–15 SCFM), electronic drain valve (25–50 SCFM)
R513A refrigerant

Order

Price Equipment Gurus price
Shipping Freight quoted by phone

Part numbers and options confirmed when you order.

Compare sizes

Lowest price shown for each size. Select a row to configure it.

Capacity Part # From From Select
7 SCFM DPRB7-A $1,210.40
11 SCFM DPRB11-A $1,302.20
15 SCFM DPRB15-A $1,473.05
25 SCFM DPRB25-A $1,844.50
32 SCFM DPRB32-A $2,445.45
42 SCFM DPRB42-A $2,874.70
50 SCFM DPRB50-A $3,133.10
75 SCFM DPRB75A $3,423.80
100 SCFM DPRB100A $3,832.65
125 SCFM DPRB125A $4,822.05
150 SCFM DPRB150A $5,353.30
200 SCFM DPRB200A $7,270.90
250 SCFM DPRB250A $8,294.30
300 SCFM DPRB300A $9,541.25
400 SCFM DPRB400A $10,777.15
500 SCFM DPRB500A $11,394.25
600 SCFM DPRB600A $13,712.20
800 SCFM DPRB800A $17,125.80
1,000 SCFM DPRB1000A $20,311.60
1,200 SCFM DPRB1200A $25,664.90

Steady +50°F dew point, 7 to 1,200 SCFM

The Deltech DPRB Series Non-Cycling Refrigerated Air Dryer features a compact footprint for easy and flexible installation. Available in 7 to 1200 SCFM capacities, the DPRB Series maintains stable operation and consistent dew point performance across varying load conditions.

Standard features

  • 7 to 1200 SCFM capacity
  • Consistent 50°F (+10°C) pressure dew poi
  • 200 PSIG max inlet air pressure
  • 120°F max inlet air temperature
  • Heat exchanger: copper coil (7–15 SCFM);
  • 115/1/60 (7–150 SCFM) or 460/3/60 (200–1
  • Pneumatic float drain (7–15 SCFM), elect

Warranty

Deltech factory warranty and support are available. A guru will send current warranty terms with your quote.

Coverage Term
Factory warranty Deltech standard
Service Local service available on all brands

Use genuine Deltech parts and follow the maintenance schedule to keep coverage.
