- Voltage
- 12V
- Cools to
- 20°F of ambient
- Max pressure
- 200 PSIG

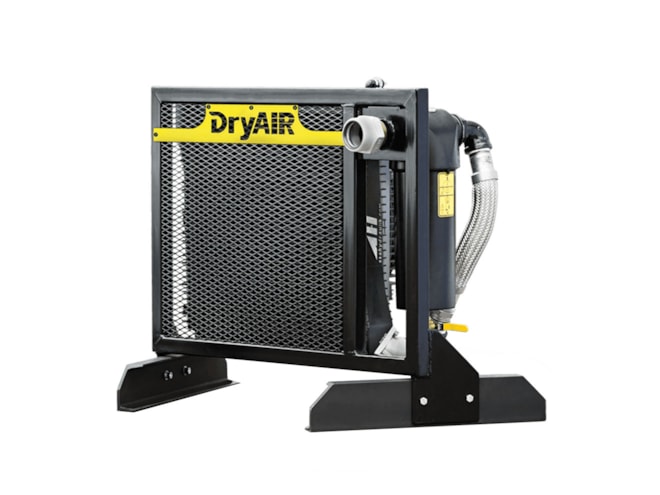

DryAIR Portable Compressor Aftercoolers
250 TMA-12V · 250 TMA · tongue mount · 250 CFM
Mention part 250 TMA-12V. A live expert confirms sizing and ship date.
Technical specifications
Showing 250 TMA-12VPart numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Model | Part # | From | From | |
|---|---|---|---|---|
| 250 TMA · tongue mount · 250 CFM | 250 TMA-12V | $5,135.71 | ||
| 400 TMA · free standing · 400 CFM | 400 TMA-12 | $8,278.57 |
Cool, dry air from portable compressors
DryAIR air-cooled aftercoolers are built for portable gas and diesel compressors, delivering air free of harmful condensed moisture by cooling it to within 20° of ambient temperature. A heavy-duty moisture separator with manual drain removes trapped moisture and condensed oil, and the DC fan motor runs from the compressor starting battery through a 13 ft cord with alligator clips, starting automatically when the system is pressurized.
The 250 TMA mounts on the compressor tongue and uses Chicago fittings, with an optional 1-micron coalescing filter and foot kit. The 400 TMA is a self-contained free-standing skid with lifting bail, JIC 24 inlet and boss outlet fittings for mid-sized compressors.
Standard features
- Cools compressed air to within 20°F of a
- 250 or 400 CFM capacity
- 200 PSIG max operating pressure
- 5 PSIG max pressure drop
- Heavy-duty moisture separator with manua
- DC fan runs from the compressor battery,
- 13 ft power cord with alligator clips
Warranty
DryAIR factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | DryAIR standard |
| Service | Local service available on all brands |
Use genuine DryAIR parts and follow the maintenance schedule to keep coverage.
