- Capacity
- 10 CFM
- Connection
- 3/8" NPT
- Voltage
- 115/60/1
- Type
- Non-cycling

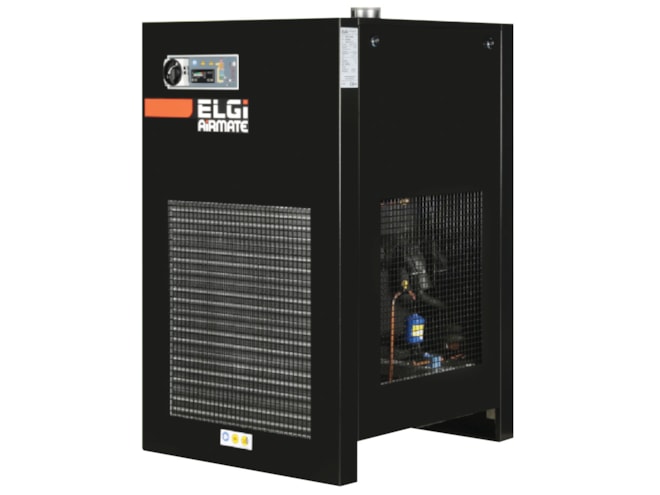

ELGi EGRD Airmate Refrigerated Air Dryer
10 CFM · 115/60/1
Some options are not offered with your earlier choices.
Mention part B000506530357. A live expert confirms sizing and ship date.
Technical specifications
Showing B000506530357Part numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Rated Flow | Part # | From | From | |
|---|---|---|---|---|
| 10 CFM | B000506530357 | $1,665.00 | ||
| 15 CFM | B000506530358 | $1,750.00 | ||
| 20 CFM | B000506530359 | $1,860.00 | ||
| 35 CFM | B000506530360 | $2,056.00 | ||
| 50 CFM | B000506530361 | $2,209.00 | ||
| 65 CFM | B000506530362 | $2,447.00 | ||
| 75 CFM | B000506530363 | $2,752.00 | ||
| 100 CFM | B000506530364 | $3,305.00 | ||
| 125 CFM | B000506530365 | $4,259.00 | ||
| 150 CFM | B000506530366 | $4,657.00 | ||
| 175 CFM | B000506530367 | $5,359.00 | ||
| 220 CFM | B000506530371 | $5,823.00 | ||
| 300 CFM | B000506530372 | $7,929.00 | ||
| 375 CFM | B000506530373 | $8,619.00 | ||
| 480 CFM | B000506530374 | $11,119.00 | ||
| 600 CFM | B000506530375 | $19,336.00 | ||
| 800 CFM | B000506530376 | $20,822.00 | ||
| 900 CFM | B000506530377 | $22,536.00 | ||
| 1,000 CFM | B000506530378 | $24,581.00 | ||
| 1,250 CFM | B000506530379 | $25,657.00 | ||
| 1,500 CFM | B000506530380 | $33,463.00 |
Constant dew point, ELGi reliability
The ELGi Airmate refrigerated air dryer is suitable for applications where a constant dew point is required.
The Airmate ensures clean and dry compressed air for the reliable working of the compressed air systems by efficiently removing condensate and other contaminants. The addition of an optional pre-filter removes particles down to 1 micron, further cleaning the air and reducing maintenance of you system.
Standard features
- 10 to 1500 CFM models available
- Max working pressure: 232 psi (EGRD 010
- Hot gas by-pass valve regulation
- 115/1/60, 230/1/60 or 460/3/60 (dependin
- Refrigerant: R134a up to EGRD 200, R404C
- UL/CSA certified
Warranty
ELGi factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | ELGi standard |
| Service | Local service available on all brands |
Use genuine ELGi parts and follow the maintenance schedule to keep coverage.
