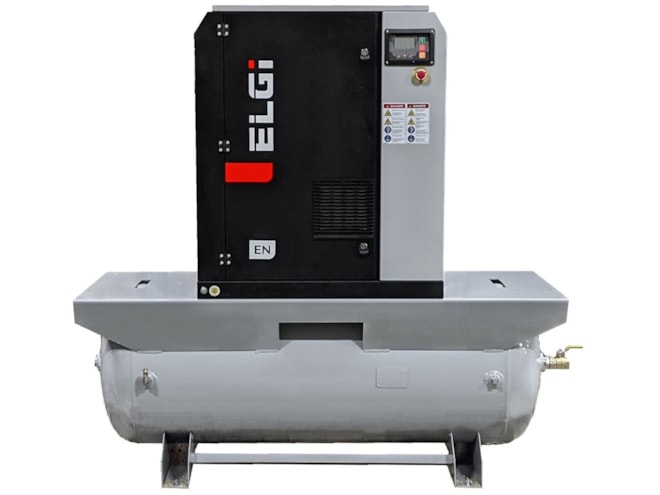

ELGi EN 10 HP rotary screw air compressor, Tank mount, 120 gal Shown: ELGi EN tank mount. Size and tank vary by model.
Flow
38.5 CFM
Pressure
125 PSI
Sound
66 dB(A)
Warranty
5-yr package
ELGi · Part EN07-125-120T-A2A

ELGi EN Series Rotary Screw Air Compressor

38.5 CFM @ 125 PSI · Fixed speed · Tank mount, 120 gal · 230/460V 3-phase

Horsepower
Drive
Package
Working pressure (PSI)

175 PSI is built to order; flow at 175 PSI is quoted by phone.

Electrical

Single-phase is offered on 4–7.5 HP only.

$10,566.72
Freight quoted by phoneShips ready to run — call for start-up
Call to order · 866-203-9939

Mention part EN07-125-120T-A2A. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing EN07-125-120T-A2A

Performance

Model EN 7
Motor power 10 HP / 7.5 kW
Free air delivery 38.5 CFM @ 125 PSI
Working pressure 125 psig (max 129)
Sound level 66 dB(A) @ 1 m, ±3
Duty cycle 100% continuous

Electrical & controls

Voltage 230/460V 3-phase · 60 Hz
Main motor TEFC severe duty, NEMA premium efficiency
Capacity control Load / no-load
Controller Neuron XT — alarms, safety shutdowns, service logs
Connectivity Remote start/stop, MODBUS over RS485
Protection Phase loss & phase reversal built in

Package & dimensions

Configuration Tank mount, 120 gal
Air treatment Aftercooler standard; dryer optional
L × W × H Tank-mount drawing on request
Weight See dimensional drawing
Oil carry-over < 3 ppm (impact & deceleration separation)
Ambient rating Up to 115°F

Flow at each pressure — 10 HP fixed speed

100 PSI
42.5 CFM
125 PSI
38.5 CFM
150 PSI
34 CFM

Free air delivery per ISO 1217:2009 Annex C; sound per ISO 2151. From the ELGi EN series brochure. Tank-mount dimensions are supplied with the order drawing.

Compare EN sizes

Flow at 125 PSI, fixed speed. Weight is for base mount. Select a row to configure that size.

HP Model CFM VFD CFM dB(A) Tank Weight (lbs) From Select
4 HP EN 3 13.5 — 61 60 gal 352 $5,695.20
5 HP EN 4 19.3 — 64 60 gal 352 $5,955.12
7.5 HP EN 5 26.5 — 64 60 gal 402 $6,751.44
10 HP EN 7 38.5 19–38 66 120 gal 573 $7,727.76
15 HP EN 11 55 21–55 67 120 gal 617 $9,704.16
20 HP EN 15 68 26–63 68 120 gal 683 $12,903.84

Quiet, compact, built for small shops

The ELGi EN is an encapsulated belt-drive rotary screw from 4 to 20 HP. All of the working parts sit inside one housing behind a single service door, the airend runs slow for long life, and at 61 to 68 dB(A) it is quiet enough to sit near where people work.

Order it base mounted, on a 60 or 120 gallon tank, or as a complete air system with a refrigerated or desiccant dryer and filters. The 10, 15 and 20 HP sizes are also offered with a variable speed drive. ELGi backs the EN with a 5-year package and 6-year airend warranty, with no service contract required.

Standard features

  • Encapsulated, single service door
  • Slow-running ELGi airend
  • Neuron XT controller
  • MODBUS / RS485 & remote start
  • Spin-on oil filter & separator
  • Standard aftercooler
  • Rated to 115°F ambient
  • Food-grade lubricant

Warranty

ELGi's EN warranty requires no service contract. Terms and conditions apply — a guru will send the full warranty document with your quote.

Coverage Term
Complete package 5 years
Airend 6 years
Airend belt life Rated 10,000 hours
Service contract Not required

Per the ELGi EN series brochure. Use genuine ELGi Airlube and parts to maintain coverage.
