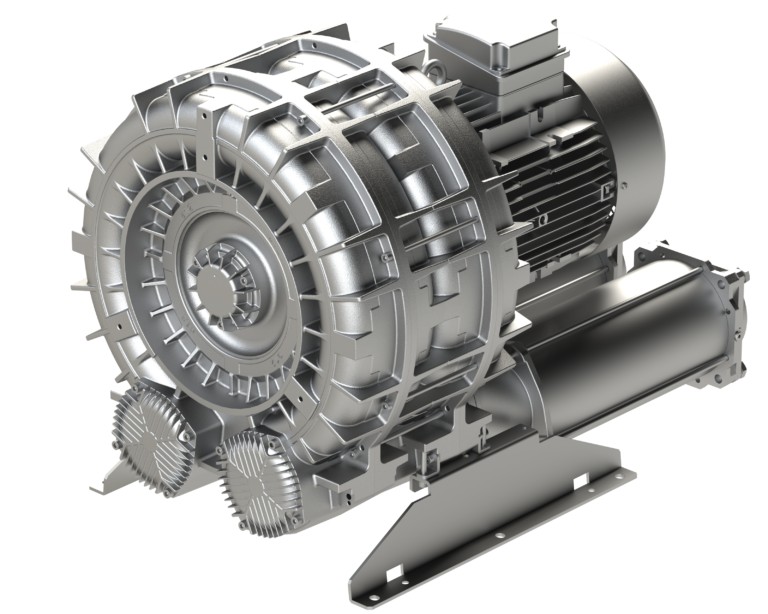

SCL e05-TD-5.5-3, 5.5 HP Regenerative Blower
Motor
5.5 HP
Max flow
181 cfm
Max pressure
150 in. H2O
Max vacuum
150 in. H2O
FPZ · Part SCL e05-TD-5.5-3

FPZ e-Series TS & TD Twin Regenerative Blowers

SCL e05-TD-5.5-3, 5.5 HP Regenerative Blower

Model
$2,928.96
Freight quoted with your orderLead time TBD, confirmed with your quote
Call to order · 866-203-9939

Mention part SCL e05-TD-5.5-3. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing SCL e05-TD-5.5-3

Tech data

Model SCL e05-TD-5.5-3
Design Twin, high pressure
Motor 5.5 HP
Electrical 208-230/460V 3-phase, 60 Hz
Build Standard TEFC motor
Max flow (60 Hz) 181 cfm
Max pressure 150 in. H2O
Max vacuum 150 in. H2O
Weight 101 lb
Connections 2" NPT in / out

Standard features

Premium efficient motor
High efficiency impeller
Mountable in any position
Maintenance-free operation
TEFC (IP55) motor
Motors include normally closed thermal protector, 1.15 service factor (60 Hz), Class F insulation
3-phase motors suitable for use with a VFD
Optional anodized aluminum components for corrosion resistance

Factory options

TMS impregnation (sealing) add $468.18
Anodized aluminum components add $661.77
Filters, silencers, safety and check valves Quoted to match your blower
Motor heater, safety valve calibration, RTD sensors Available by quote
Shipping Freight is additional, quoted with your order
Lead time TBD, confirmed with your quote

Performance at 60 Hz from FPZ data sheets. Freight is additional.

Compare models

Base price shown for each model. Select a row to configure it.

Model Max flow Max pressure Motor range From From Select
SCL e05-TD 181 cfm 150 in. H2O 5.5 HP $2,928.96
SCL e05-TS — — 5.5 HP $2,826.90
SCL e06-TD 258 cfm 170 in. H2O 10 HP $3,801.33
SCL e06-TS — — 10 HP $3,681.45
SCL e07-TD 304 cfm 220 in. H2O 15 HP $5,619.78
SCL e07-TS 582 cfm 100 in. H2O 15 HP $6,612.03
SCL e08-TD 406 cfm 160 in. H2O 15 HP $6,210.27
SCL e08-TS 712 cfm 60 in. H2O 15 HP $6,241.05
SCL e09-TD — — 20–25 HP $9,219.42
SCL e09-TS 951 cfm 80 in. H2O 20–30 HP $9,413.01
SCL e10-TD 594 cfm 170 in. H2O 25 HP $9,656.82
SCL e10-TS 1122 cfm 50 in. H2O 20–25 HP $9,653.58
SCL e11-TD 665 cfm 130 in. H2O 25 HP $11,992.86
SCL e11-TS 1304 cfm 50 in. H2O 25–30 HP $11,711.79
SCL e12-TD 735 cfm 100 in. H2O 30 HP $12,213.18
SCL e12-TS 1492 cfm 70 in. H2O 30–40 HP $12,924.36

FPZ e-Series TS & TD Twin Regenerative Blowers

FPZ e-Series TS and TD twin regenerative blowers pair two impeller stages on one motor. TS models are built for high flow; TD models for higher pressure and vacuum. Like the rest of the e-Series they are oil-free, maintenance-free and mountable in any position, with premium efficient TEFC motors.

Standard features

  • Premium efficient motor
  • High efficiency impeller
  • Mountable in any position
  • Maintenance-free operation
  • TEFC (IP55) motor
  • Motors include normally closed thermal protector, 1.15 service factor (60 Hz), Class F insulation
  • 3-phase motors suitable for use with a VFD
  • Optional anodized aluminum components for corrosion resistance

Warranty

FPZ factory warranty and support are available. A guru will send current warranty terms with your quote.

Coverage Term
Factory warranty FPZ standard
Service Local service available on all brands

Use genuine FPZ parts and follow the maintenance schedule to keep coverage.
