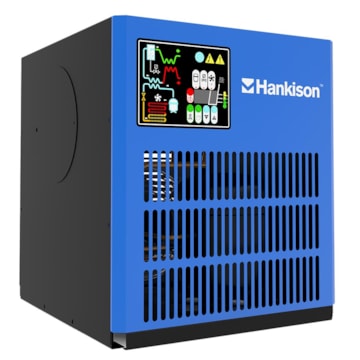

Hankison HPRB Dryer
Capacity
7 SCFM
Connection
3/8" MNPT
Voltage
115/1/60
Refrigerant
R513A
Hankison · Part HPRB7-A

Hankison HPRB Series Non-Cycling Refrigerated Air Dryer

7 SCFM

Capacity (SCFM)
Filter Package
$1,210.40
Freight quoted by phoneConfigured to order
Call to order · 866-203-9939

Mention part HPRB7-A. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing HPRB7-A

Configuration

Capacity 7 SCFM
Connections 3/8" MNPT
Voltage 115/1/60
Filter Package None
Part number HPRB7-A

Highlights

7 to 50 SCFM capacity
200 PSIG max inlet air pressure
120°F max inlet air temperature
Heat exchanger: copper coil (7–15 SCFM); aluminum 3-in-1 pre-cooler/re-heater with chiller and built-in moisture separator (25–50 SCFM)
115/1/60 voltage
Pneumatic float drain (7–15 SCFM), electronic drain valve (25–50 SCFM)
R513A refrigerant
Certified to UL 60335 and CSA 22.2 #60335 for the U.S. and Canada

Order

Price Equipment Gurus price
Shipping Freight quoted by phone

Part numbers and options confirmed when you order.

Compare sizes

Lowest price shown for each size. Select a row to configure it.

Capacity Part # From From Select
7 SCFM HPRB7-A $1,210.40
11 SCFM HPRB11-A $1,302.20
15 SCFM HPRB15-A $1,473.05
25 SCFM HPRB25-A $1,844.50
32 SCFM HPRB32-A $2,445.45
42 SCFM HPRB42-A $2,874.70
50 SCFM HPRB50-A $3,133.10

Compact non-cycling dryer, 7 to 50 SCFM

The Hankison HPRB Series Non-Cycling Refrigerated Air Dryer features a compact footprint for easy and flexible installation. Available in 7 to 50 SCFM capacities, the HPRB Series maintains stable operation and consistent dew point performance across varying load conditions.

Standard features

  • 7 to 50 SCFM capacity
  • 200 PSIG max inlet air pressure
  • 120°F max inlet air temperature
  • Heat exchanger: copper coil (7–15 SCFM);
  • 115/1/60 voltage
  • Pneumatic float drain (7–15 SCFM), elect
  • R513A refrigerant

Warranty

Hankison factory warranty and support are available. A guru will send current warranty terms with your quote.

Coverage Term
Factory warranty Hankison standard
Service Local service available on all brands

Use genuine Hankison parts and follow the maintenance schedule to keep coverage.
