- Capacity
- 22 CFM
- Pressure
- 175 PSI
- Engine
- 10 HP Kohler
- Tank
- 30 gal
Ingersoll Rand 2475 Diesel Piston Air Compressor
Ingersoll Rand 2475 Diesel Powered Two-Stage Piston Air Compressor
Mention part 2475F10DK. A live expert confirms sizing and ship date.
Technical specifications
Showing 2475F10DKOption prices are added to the base price shown.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Capacity | Power | Build | From | From | |
|---|---|---|---|---|---|---|
| 2475F10DK · Kohler | 22 CFM @ 175 PSI | 10 HP Kohler diesel | 30 gal tank | $8,499.99 | ||
| 2475F10DY · Yanmar | 22.6 CFM @ 175 PSI | 10 HP Yanmar diesel | 30 gal tank | $9,159.99 |

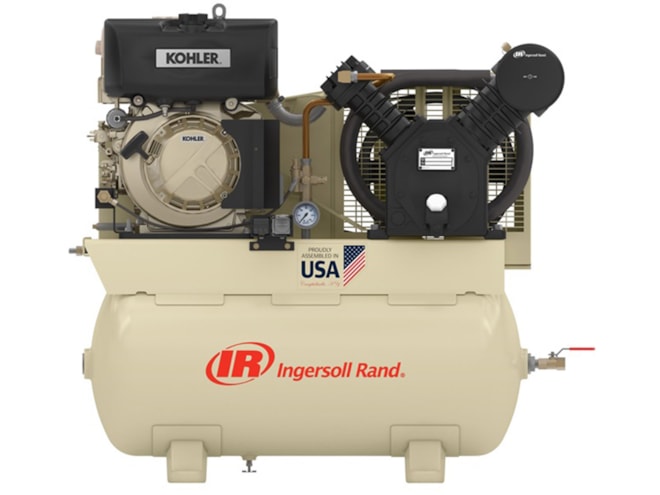

Ingersoll Rand 2475 Diesel Piston Air Compressor
The Ingersoll Rand 2475 diesel powered two-stage piston air compressor is designed to deliver compressed air where electric power is not available. With truck-bed mounting, the 2475 is often used in fleet and field service, remote pneumatic, and emergency production line applications.
It features durable cast iron construction, an enclosed belt guard, and a weather-resistant powder-coat paint finish designed for over 15,000 hours of use. The two-stage pump operates up to 175 PSI and the 30 gallon ASME receiver tank provides plenty of compressed air for demanding applications.
Standard features
- Kohler 10 HP: 22 CFM at 175 PSI
- Yanmar 10 HP: 22.6 CFM at 175 PSI
- Two-stage cast iron pump, up to 175 PSI
- 30 gallon horizontal ASME receiver tank
- Pull and electric start
- Enclosed belt guard
- Manual tank drain
- Weather-resistant powder-coat finish
Warranty
Ingersoll Rand factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Ingersoll Rand standard |
| Service | Local service available on all brands |
Use genuine Ingersoll Rand parts and follow the maintenance schedule to keep coverage.
