- Flow
- 36 CFM
- Pressure
- 125 PSI
- Dryer
- None
- Tank
- 80 gal

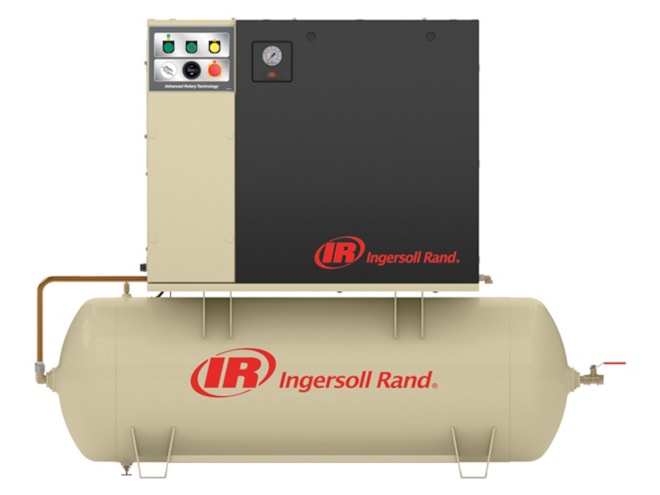

Ingersoll Rand UP6 Rotary Screw Air Compressor
36 CFM @ 125 PSI · 80 gal tank · 460V 3-phase
Same price for 80 or 120 gallon.
Single-phase is offered on 5 and 7.5 HP only.
Mention part UP6-10-125 · 460V 3-phase · 80 gal tank. A live expert confirms sizing and ship date.
Technical specifications
Showing UP6-10-125 · 460V 3-phase · 80 gal tankFlow at each pressure — 10 HP
Rated flow from Ingersoll Rand UP6 data. 80 gal tank dimensions and weight from Ingersoll Rand; confirm other configurations on the dimensional drawing.
Compare UP6 sizes
Select a row to configure that size.
| HP | Model | CFM @125 | CFM @150 | Tank mount | Tank + TAS | From | |
|---|---|---|---|---|---|---|---|
| 5 HP | UP6-5 | 15 | 13 | $8,559.99 | $11,374.99 | $7,584.99 | |
| 7.5 HP | UP6-7.5 | 26 | 23 | $9,499.99 | $12,329.99 | $8,509.99 | |
| 10 HP | UP6-10 | 36 | 32 | $10,599.99 | $14,234.99 | $9,744.99 | |
| 15 HP | UP6-15c | 52 | 47 | $11,804.99 | $15,399.99 | $10,949.99 |
Rotary screw for the small shop
The UP6 is Ingersoll Rand's compact 5 to 15 HP rotary screw, built in the USA for shops that have outgrown a piston compressor. It runs continuously, quietly, and with far less oil carry-over than a reciprocating pump.
Order it base mounted or on an 80 or 120 gallon tank, and add the Total Air System (TAS) to get an integrated refrigerated dryer in the same cabinet — dry air from one plug-and-play package.
Standard features
- Poly-V belt drive
- Auto start/stop control
- Simple diagnostics
- Sound-attenuating NEMA 1 cabinet
- Optional integrated TAS dryer
- 80 or 120 gal tank
- Single-phase on 5–7.5 HP
- Made in the USA
Warranty
Ingersoll Rand factory warranty applies. Extended coverage is available through Ingersoll Rand programs when genuine parts and fluids are used — a guru will send current terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Ingersoll Rand standard package warranty |
| Extended coverage | Available with genuine parts and fluid |
| Support | Factory warranty and support available |
Ask about current Ingersoll Rand warranty terms for the UP6.
