- Flow
- 113 CFM
- Pressure
- 125 PSI
- Sound
- 73 dB(A)
- Drive
- Fixed

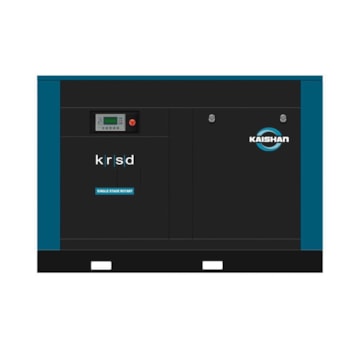

Kaishan KRSD Direct-Drive Rotary Screw Air Compressor
113 CFM @ 125 PSI · Fixed speed · Base mount (KRSD) · 460V 3-phase
Fixed-speed flow is published at 115 and 125 PSI; 150 PSI is quoted by phone.
Mention part KRSD-025A2F4S8U. A live expert confirms sizing and ship date.
Technical specifications
Showing KRSD-025A2F4S8UFlow at each pressure — 25 HP fixed speed
Performance per ISO 1217, from the Kaishan USA KRSD brochure. Confirm critical dimensions against the dimensional drawing before install.
Compare KRSD sizes
Flow at 125 PSI. Dimensions and weight shown for fixed speed. Select a row to configure that size.
| HP | Fixed CFM | VSD CFM | dB(A) | L × W × H (in) | Weight (lbs) | From | |
|---|---|---|---|---|---|---|---|
| 15 HP | 66 | 62 | 72 | 51 × 31 × 43 | 981 | $10,809.00 | |
| 20 HP | 72 | 68 | 72 | 51 × 31 × 43 | 1,013 | $12,101.00 | |
| 25 HP | 113 | 107 | 73 | 56 × 34 × 44 | 1,211 | $13,565.00 | |
| 30 HP | 138 | 142 | 73 | 56 × 34 × 44 | 1,389 | $16,186.00 | |
| 40 HP | 195 | 191 | 74 | 70 × 40 × 52 | 2,116 | $20,608.00 | |
| 50 HP | 233 | 228 | 74 | 70 × 40 × 52 | 2,234 | $22,587.00 | |
| 60 HP | 281 | 276 | 75 | 77 × 46 × 62 | 2,866 | $27,029.00 | |
| 75 HP | 352 | 341 | 75 | 77 × 46 × 62 | 3,549 | $32,018.00 | |
| 100 HP | 492 | 470 | 76 | 89 × 48 × 62 | 4,608 | $40,923.00 | |
| 125 HP | 597 | 563 | 77 | 93 × 52 × 65 | 4,343 | $49,044.00 | |
| 150 HP | 714 | 705 | 78 | 99 × 53 × 67 | 6,613 | $60,855.00 | |
| 200 HP | 902 | 878 | 79 | 99 × 53 × 67 | 6,724 | $70,734.00 |
Direct drive for plant air
The KRSD is Kaishan's single-stage, direct-drive rotary screw line for production plants, from 15 to 200 HP. With no belts between motor and airend, there is no belt loss or belt maintenance, and the SKK airend with its asymmetric 5/6 rotor profile delivers up to 902 CFM at 125 PSI.
Choose fixed speed for steady, full-load demand, or variable speed to match output to the air you actually use. The 15 and 20 HP sizes are also offered tank mounted as the KRSDT. Start-up by a factory-trained technician is included.
Standard features
- Direct drive, no belts
- SKK airend, 5/6 rotor profile
- TEFC IP54 motor, Class F
- Digital controller with alarms
- Axial cooling fans
- High-efficiency intake filters
- 316 stainless control tubing
- Sound-deadening enclosure
Warranty
Coverage starts at the earlier of start-up or shipment. Extended and lifetime airend coverage require an authorized start-up, a completed start-up report, genuine Kaishan parts and fluid, and maintenance per the O&M manual.
| Coverage | Term |
|---|---|
| Complete package | 12 months from start-up or 18 months from shipment, parts & labor |
| Airend (standard) | 24 months |
| Lifetime airend* | Parts & labor for 120 months from start-up (126 from shipment), then parts only |
| Above 150 PSI | 1-year package, 2-year airend — no extended coverage |
| Replacement parts | 90 days from sale or 6 months from shipment |
*Qualifying units at or below 150 PSI discharge. Oil analysis required; Kaishan synthetic or food-grade fluid only. Claims in writing within 30 days.
