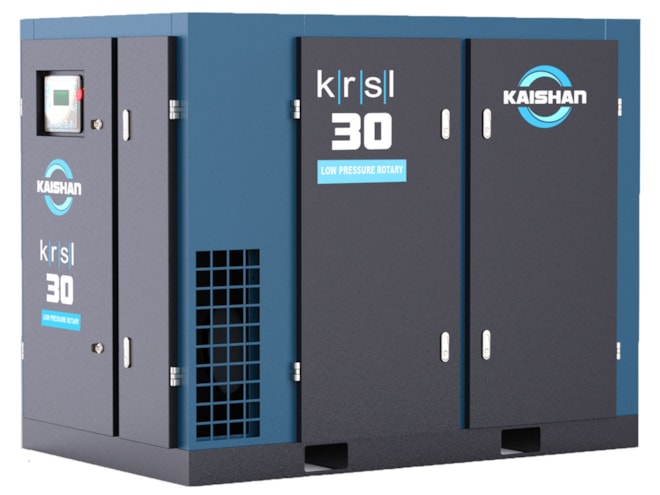

Kaishan KRSL 60 HP low-pressure rotary screw air compressor Shown: KRSL 30. Size varies by model.
Flow
523 CFM
Pressure
30 PSI
Sound
72 dB(A)
Drive
Direct
Kaishan USA · Part KRSL-060A9F7S8U

Kaishan KRSL Low-Pressure Rotary Screw Air Compressor

523 CFM @ 30 PSI · Direct drive · 460V 3-phase

Horsepower
Discharge pressure (PSI)

Adjustable from 25 to 45 PSI.

Electrical

Medium-voltage (2300 / 4160V) motors are special order.

$44,274.00
Free shippingFactory start-up included
Call to order · 866-203-9939

Mention part KRSL-060A9F7S8U. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing KRSL-060A9F7S8U

Performance

Model KRSL-060
Motor 60 HP
Capacity 523 CFM @ 30 PSI
Pressure range 25–45 psig
Airend SKYv variable discharge port, SKF bearings
Sound level 72 dB(A)

Electrical & controls

Voltage 460V 3-phase · 60 Hz
Main motor TEFC (IP54) IEC frame, Class F
Starter Wye-delta
Controller MAM-200 digital — sequences up to 16 units, RS-485
Capacity control Modulating inlet valve
Cooling Integrated aftercooler, 14°F approach

Package

Oil separation 3-stage tangential, 3 ppm carry-over
Control tubing 316 stainless steel
L × W × H 90 × 53 × 64 in
Weight 3,975 lbs
Air outlet ANSI 2.5" flange
Start-up Factory start-up included
Drive Direct drive, fixed speed

Flow at each pressure — 60 HP

30 PSI
523 CFM
36 PSI
515 CFM
45 PSI
507 CFM

Specifications from Kaishan USA (KRSL low pressure series). Confirm critical dimensions against the dimensional drawing before install.

Compare KRSL sizes

Select a row to configure that size.

HP Model CFM @30 CFM @36 CFM @45 dB(A) L × W × H (in) Weight (lbs) From Select
30 HP KRSL-030 279 275 271 71 71 × 46 × 54 2,271 $28,757.00
60 HP KRSL-060 523 515 507 72 90 × 53 × 64 3,975 $44,274.00
100 HP KRSL-100 1025 1010 995 74 113 × 69 × 81 7,715 $77,012.00
200 HP KRSL-200 2050 2020 1990 76 157 × 81 × 88 13,051 $137,778.00

Low pressure, high volume

Most plant air runs at 100 PSI or more, but many processes — glass blowing, aeration, conveying, fermentation, textile jets — only need 25 to 45 PSI. Running a standard compressor and throttling it down wastes energy. The KRSL is built for low pressure from the airend up, delivering up to 2,050 CFM.

Kaishan's SKYv airend uses a variable discharge port matched to low pressure, driven directly by a TEFC motor with wye-delta start. The MAM-200 controller sequences up to 16 compressors, and factory start-up is included.

Standard features

  • Built for 25–45 PSI
  • SKYv variable-port airend
  • Direct drive, no belts
  • MAM-200 controller
  • Wye-delta start
  • 3 ppm oil carry-over
  • 316 SS control tubing
  • Factory start-up included

Warranty

Coverage starts at the earlier of start-up or shipment. Extended airend coverage requires an authorized start-up, genuine Kaishan parts and fluid, and maintenance per the O&M manual.

Coverage Term
Complete package 12 months from start-up or 18 from shipment, parts & labor
Airend (standard) 24 months
Lifetime airend* Parts & labor 120 months from start-up, then parts only
Replacement parts 90 days from sale or 6 months from shipment

*Qualifying units. Oil analysis required. Claims in writing within 30 days.
