- Flow
- 10.2 CFM
- Max pressure
- 145 PSI
- Sound
- 65 dB(A)
- Weight
- 101 lbs

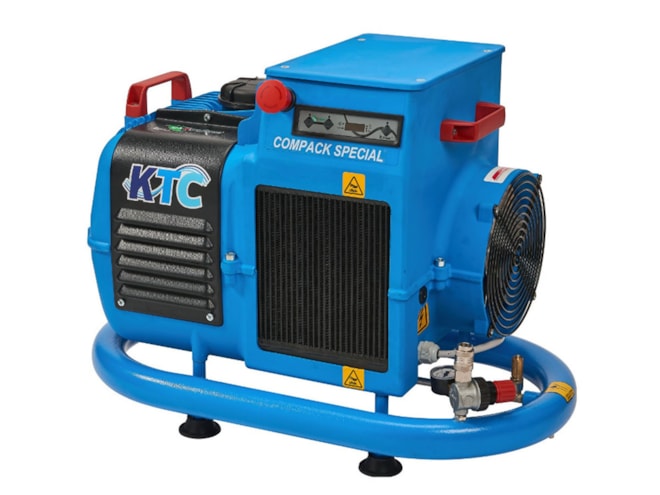

KTC Compack 2 Portable Rotary Screw Air Compressor
10.2 CFM · 145 PSI max · Compact portable · 230V 1-phase
Mention part 80012067-01-93. A live expert confirms sizing and ship date.
Technical specifications
Showing 80012067-01-93Specifications from KTC product data. Sound level per KTC (2.2 kW model).
Compare Compack versions
Same 3 HP, 10.2 CFM compressor in every version. Select a row to configure it.
| Electrical | Compact part # | Compact | Tank ring part # | With tank ring | From | |
|---|---|---|---|---|---|---|
| 230V 1-phase | 80012067-01-93 | $3,981.03 | 1850220520-01-93 | $6,442.38 | $3,981.03 | |
| 230V 3-phase | 80012041-02-93 | $4,248.74 | 1850223520-02-93 | $6,877.20 | $4,248.74 | |
| 460V 3-phase | 80012041-01-93 | $4,248.74 | 1850223520-01-93 | $6,877.20 | $4,248.74 |
A rotary screw you can carry
The KTC Compack 2 packs a full rotary screw compressor into a 101 lb aluminum case — 10.2 CFM at up to 145 PSI, quiet at 65 dB(A), and ready to run continuously like a plant compressor, not a piston unit that needs rest.
The direct-drive airend, K-Tronic 5 controller and built-in anti-condensation heater make it a natural fit for service trucks, mobile repair, dental and lab air, and small shops. Order it as a compact portable with its built-in 0.7 gal receiver, or with a tank ring to set it on a larger air receiver.
Standard features
- Rotary screw in a 101 lb case
- Direct drive airend
- K-Tronic 5 controller
- Anti-condensation heater
- Spin-on filters
- Service access porthole
- Single or three phase
- Steel core, aluminum case
Warranty
KTC factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | KTC standard |
| Maintenance kit | KTC N11L0782 kit for Compack 2 |
Use genuine KTC filters and fluid to keep coverage.
