- Flow
- 41 SCFM
- Dew point
- -40°F
- Max pressure
- 232 PSIG
- ISO 8573-1
- 2.2

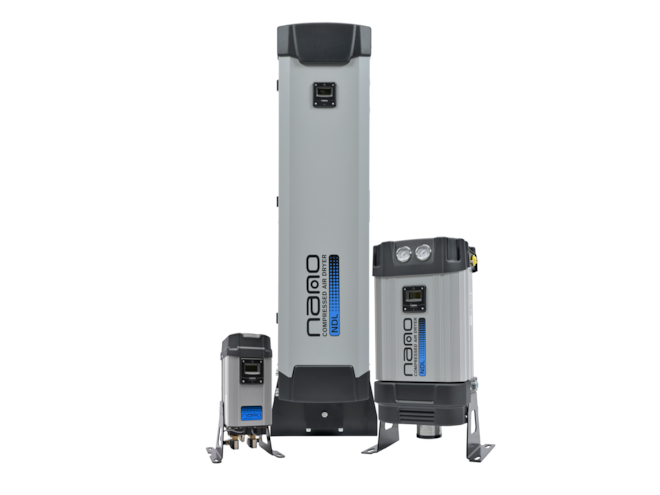

nano-purification solutions NDL Modular Desiccant Air Dryer
41 SCFM · 1" NPT · 232 PSIG max · NDL 070 GFN
Mention part 8095090251. A live expert confirms sizing and ship date.
Technical specifications
Showing 8095090251Specifications from nano-purification solutions.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Flow | Connection | Model | Price | From | |
|---|---|---|---|---|---|
| 3 SCFM | 3/8" NPT | NDL 010 GFN | $1,998.00 | ||
| 5 SCFM | 3/8" NPT | NDL 020 GFN | $2,170.80 | ||
| 10 SCFM | 3/8" NPT | NDL 030 GFN | $2,637.00 | ||
| 15 SCFM | 3/8" NPT | NDL 040 | $3,053.70 | ||
| 20 SCFM | 1/2" NPT | NDL 050 GFN | $4,036.50 | ||
| 34 SCFM | 1" NPT | NDL 060 GFN | $4,757.40 | ||
| 41 SCFM | 1" NPT | NDL 070 GFN | $5,218.20 | ||
| 53 SCFM | 1" NPT | NDL 080 GFN | $5,564.70 | ||
| 66 SCFM | 1" NPT | NDL 090 GFN | $5,738.40 | ||
| 88 SCFM | 1" NPT | NDL 100 GFN | $6,385.50 | ||
| 106 SCFM | 1" NPT | NDL 110 GFN | $8,901.00 | ||
| 132 SCFM | 1" NPT | NDL 120 GFN | $9,135.90 | ||
| 177 SCFM | 1" NPT | NDL 130 GFN | $10,020.60 | ||
| 212 SCFM | 2" NPT | NDL 2110 GFN | $11,655.00 | ||
| 276 SCFM | 2" NPT | NDL 2120 GFN | $12,840.30 | ||
| 400 SCFM | 2" NPT | NDL 2130 GFN | $15,319.80 | ||
| 560 SCFM | 2" NPT | NDL 3130 GFN | $19,584.90 | ||
| 750 SCFM | 2 1/2" NPT | 8095090320 | $23,712.30 | ||
| 828 SCFM | 2 1/2" NPT | 8095090325 | $25,752.60 | ||
| 1,110 SCFM | 2 1/2" NPT (3" NPT filters) | 8095090330 | $30,313.80 |
Ultra-pure air, modular and quiet
The nano NDL is a modular heatless desiccant dryer that delivers ISO 8573-1:2010 Class 2 dirt (1 micron) and Class 2 water (-40°F pressure dew point). Twenty sizes cover 3 to 1,110 SCFM, for the compressor room, the point of use or built into equipment.
PLC-controlled solenoid valves and special exhaust silencers keep it quiet, and a digital display shows status, hours run and service due. Memory retention picks up mid-cycle after a power loss, and compressor synchronization stops the dryer — and its purge — when air is not needed. An after filter is built in on every model; 3 to 24 SCFM packages add an inlet water separator and floor or wall brackets.
Standard features
- 3–1,110 SCFM
- -40°F dew point
- ISO Class 2.2
- PLC control
- Compressor sync
- Built-in after filter
Warranty
nano factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | nano standard |
| Service | Local service available on all brands |
Use genuine nano parts and follow the maintenance schedule to keep coverage.
