- Pumping speed
- 2.4 CFM
- Ultimate
- 6 x 10⁻³ Torr
- Type
- Oil-sealed
NAVAC EcoDrive Series Two-Stage Vacuum Pumps

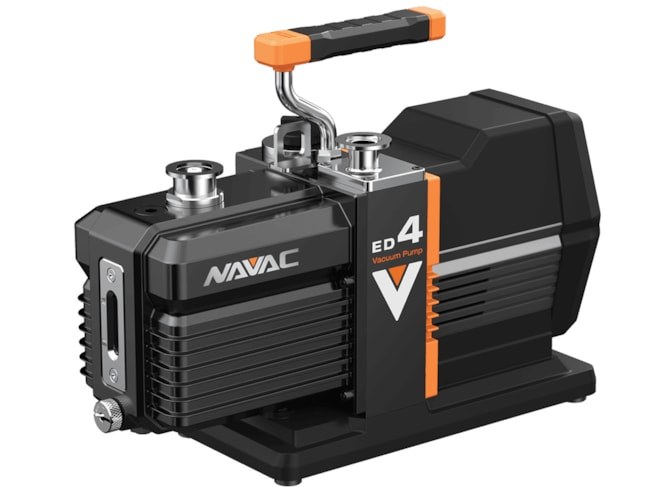

NAVAC EcoDrive Series Oil-Sealed Rotary Vane Vacuum Pump — ED4
Mention part ED4. A live expert confirms sizing and ship date.
Technical specifications
Showing ED4Specifications from NAVAC. Part numbers confirmed when you order.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Pumping speed | Motor / vacuum | Electrical | From | From | |
|---|---|---|---|---|---|---|
| ED4 | 2.4 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $3,170.00 | ||
| ED8 | 4.7 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $3,710.00 | ||
| ED12 | 5.9 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $4,240.00 | ||
| ED16 | 9.4 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $4,664.00 | ||
| ED24 | 14 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $6,996.00 | ||
| ED30 | 18 CFM | 6 x 10⁻³ Torr | 115V/1PH/60Hz | $8,374.00 |
NAVAC EcoDrive Series Two-Stage Vacuum Pumps
The NAVAC EcoDrive Series is a two-stage oil-sealed rotary vane vacuum pump driven by a permanent magnet motor. Its Eco Mode keeps the pump running at peak efficiency to cut energy use and noise.
Forced oil circulation, an anti-suck back design and a two-position gas ballast make it a reliable choice for long-running industrial and lab duty.
Standard features
- Two-stage oil-sealed rotary vane
- Permanent magnet motor with Eco Mode
- 2.4 to 18 CFM pumping speed
- Ultimate pressure 6 x 10⁻³ Torr (1.5 Torr with gas ballast)
- cUL approved
- Two-position adjustable gas ballast
- Anti-suck back design
- Forced oil circulation
- KF25 flange inlet / outlet
- 115V 1-phase 60 Hz
Warranty
NAVAC factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | NAVAC standard |
| Service | Local service available on all brands |
Use genuine NAVAC parts and follow the maintenance schedule to keep coverage.
