- Pumping speed
- 2.8 CFM
- Motor
- 0.5 HP
- Type
- Oil-sealed

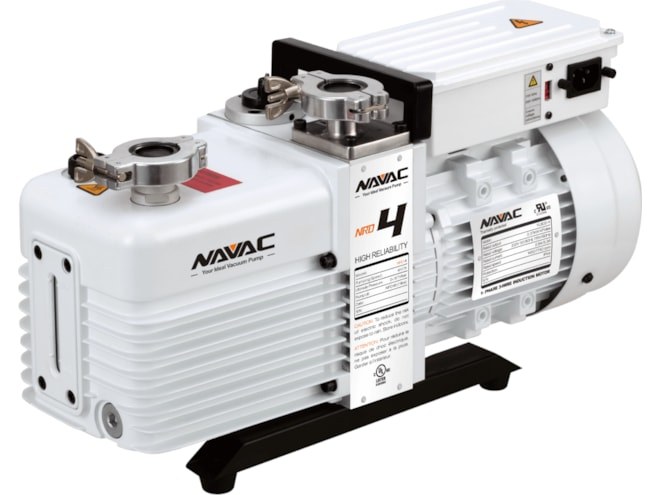

NAVAC NRD4 Two-Stage Rotary Vane Vacuum Pump
NAVAC NRD4 Dual-Stage Oil-Sealed Rotary Vane Vacuum Pump — NRD4
Mention part NRD4. A live expert confirms sizing and ship date.
Technical specifications
Showing NRD4Specifications from NAVAC. Part numbers confirmed when you order.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Pumping speed | Motor / vacuum | Electrical | From | From | |
|---|---|---|---|---|---|---|
| NRD4 | 2.8 CFM | 0.5 HP | 115/230V 1PH 50/60Hz | $2,200.00 |
NAVAC NRD4 Two-Stage Rotary Vane Vacuum Pump
The NAVAC NRD4 is a compact two-stage oil-sealed rotary vane pump that pairs high performance with excellent value.
Its integrated cylinder design, forced oil circulation, automatic anti-suck back valves and adjustable gas ballast make it a dependable pump for R&D, science and medical work, including analytical systems, vacuum ovens, coating, sterilization, freeze drying, microscopy and backing turbo or diffusion pumps.
Standard features
- Two-stage oil-sealed rotary vane
- 0.5 HP motor, 2.8 CFM
- 115/230V dual voltage, 1-phase, 50/60 Hz
- Mineral oil (NPO46) included
- Two-position adjustable gas ballast
- Dual automatic anti-suck back
- Forced oil circulation
- Integrated cylinder structure
Warranty
NAVAC factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | NAVAC standard |
| Service | Local service available on all brands |
Use genuine NAVAC parts and follow the maintenance schedule to keep coverage.
