- Pumping speed
- 30 CFM
- Ultimate
- 0.11 Torr
- Type
- Oil-sealed
NAVAC UniDrive LC-MS Series Vacuum Pumps

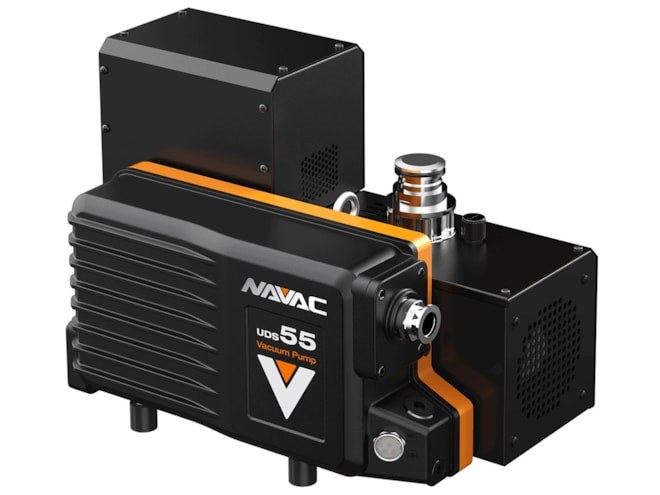

NAVAC UniDrive LC-MS Series Oil-Sealed Rotary Vane Vacuum Pump — UDS55
Mention part UDS55. A live expert confirms sizing and ship date.
Technical specifications
Showing UDS55Specifications from NAVAC. Part numbers confirmed when you order.
Compare models
Base price shown for each model. Select a row to configure it.
| Model | Pumping speed | Motor / vacuum | Electrical | From | From | |
|---|---|---|---|---|---|---|
| UDS55 | 30 CFM | 0.11 Torr | 220V/1PH/60Hz | $6,183.00 | ||
| UDS75 | 41 CFM | 0.11 Torr | 220V/1PH/60Hz | $8,511.00 |
NAVAC UniDrive LC-MS Series Vacuum Pumps
The NAVAC UniDrive LC-MS Series is a single-stage oil-sealed rotary vane pump built for liquid chromatography-mass spectrometry. It is compact and quiet for laboratory spaces, and the included high-efficiency oil mist filter keeps oil vapor out of the room while extending service life.
An adjustable gas ballast handles different levels of condensable vapor.
Standard features
- Single-stage oil-sealed rotary vane
- Optimized for LC-MS (liquid chromatography-mass spectrometry)
- 30 or 41 CFM pumping speed
- 0.11 Torr ultimate pressure
- Compact, low-noise design for labs
- High-efficiency oil mist filter included
- Adjustable gas ballast
- KF40 inlet / KF25 outlet
- IP20 rated
- 220V 1-phase 60 Hz
Warranty
NAVAC factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | NAVAC standard |
| Service | Local service available on all brands |
Use genuine NAVAC parts and follow the maintenance schedule to keep coverage.
