- Motor
- 5 HP
- Stages
- 2
- Oil
- None
- Cooling
- Fan

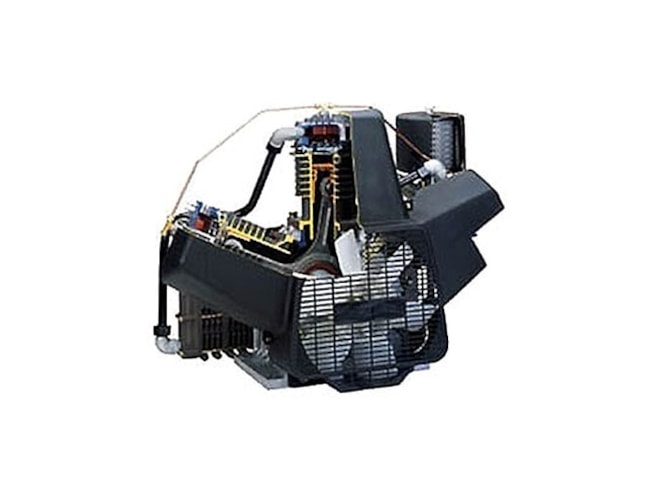

Powerex OPS & OPT Reciprocating Piston Oilless Pump
OPT050 · 5 HP · two stage oil-less piston pump
Mention part OPT050. A live expert confirms sizing and ship date.
Technical specifications
Showing OPT050Construction details from Powerex.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Model | HP | Stages | Price | From | |
|---|---|---|---|---|---|
| OPS011 | 1 HP | Single stage | $2,034.37 | ||
| OPS015 | 1.5 HP | Single stage | $2,072.67 | ||
| OPS030 | 2–3 HP | Single stage | $3,783.58 | ||
| OPT050 | 5 HP | Two stage | $7,513.06 | ||
| OPT100 | 7.5–10 HP | Two stage | $9,115.14 | ||
| OPT150 | 15 HP | Two stage | $10,747.62 |
Oil-free piston air, 1 to 15 HP
Powerex OPS and OPT pumps are oil-less reciprocating piston air ends. An oil-less composite piston slides within a low-friction, wear-resistant aluminum cylinder, compressing air on the upstroke, and the discharge air is cooled by an air-to-air aftercooler.
OPS models (1 to 3 HP) are single stage; OPT models (5 to 15 HP) are two stage with an air-cooled intercooler. The finned cylinder is cooled by flywheel fan blades, plus a dedicated fan from 2 HP up. Sealed bearings, a grease-filled wrist pin, head unloaders and corrosion-resistant construction round it out.
Standard features
- 1–15 HP
- Single & two stage
- Composite piston
- Air-cooled intercooler
- Sealed bearings
- Head unloaders
- Meets NFPA 99
- Made in the USA
Warranty
Powerex factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Powerex standard |
| Service | Local service available on all brands |
Use genuine Powerex parts and follow the maintenance schedule to keep coverage.
