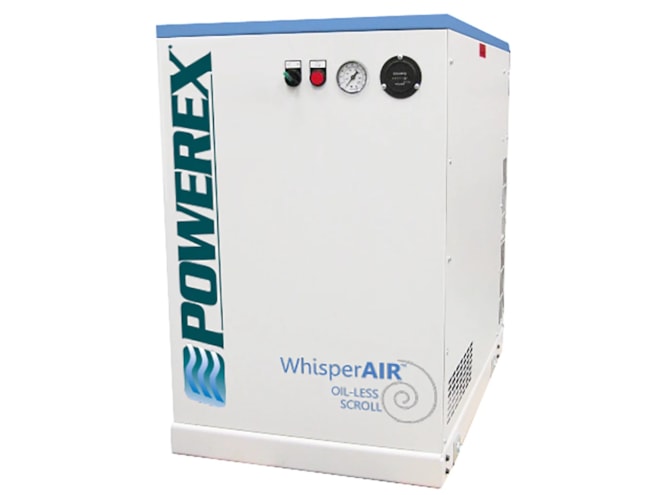

Powerex WhisperAIR enclosed oilless scroll compressor
Flow
15.2 CFM
Max pressure
116 PSI
System
5 HP
Pumps
one
Powerex · Part SES0508-3-2

Powerex Enclosed Oilless Scroll Air Compressor

15.2 CFM @ 116 PSI · 5 HP · 230V 3-phase

System horsepower
Maximum pressure
Voltage
$9,362.59
Freight quoted by phoneMade in the USA
Call to order · 866-203-9939

Mention part SES0508-3-2. A live expert confirms sizing and ship date.

Pay your way
Credit card, ACH or PO
Financing — apply online
24–60 months, decisions in about 2 hours

Technical specifications

Showing SES0508-3-2

Performance

System horsepower 5 HP
Flow 15.2 CFM @ 116 PSI
Pressure rating 116 PSI (standard)
Compressor type 100% oil-less scroll, simplex

Construction

Enclosure Sound-attenuating cabinet
Motor ODP
Aftercooler Air-cooled, one per compressor
Inlet filtration Replaceable element
Isolation Internal vibration isolators

Electrical & order

Voltage 230V 3-phase
Certification UL / CSA
Part number SES0508-3-2
Shipping Freight quoted by phone

Flow per Powerex at 116 PSI (standard) or 145 PSI (high pressure).

Compare sizes

Lowest price shown for each size. Select a row to configure it.

System CFM @116 Part # From From Select
3 HP 8.8 SES0308-2-2 $8,293.73
5 HP 15.2 SES0508-2-2 $9,362.59
10 HP (two 5 HP pumps) 30.4 SED1007-2 $19,184.83
15 HP (three 5 HP pumps) 45.6 SET1507-2 $26,043.68
20 HP (four 5 HP pumps) 60.8 SEQ2007-2 $32,906.78
20 HP (two 10 HP pumps) 62.4 SED20B7-2 $33,754.94
22.5 HP (three 7.5 HP pumps) 69.3 SET2257-2 $40,120.10
30 HP (six 5 HP pumps) 91.2 SEH3007-2 $50,891.42
30 HP (three 10 HP pumps) 93.6 SET30B7-2 $48,888.67
40 HP (five 8 HP pumps) 121.6 SEO4007-2 $63,597.41
40 HP (four 10 HP pumps) 124.8 SEQ40B7-2 $64,022.40
45 HP (six 7.5 HP pumps) 138.6 SEH45B7-2 $70,095.71
50 HP (five 10 HP pumps) 156.0 SEP50B7-2 $75,558.59
60 HP (six 10 HP pumps) 187.2 SEH60B7-2 $90,005.28

Quiet enclosed scroll air, simplex to multiplex

Powerex enclosed oilless scroll compressors put 100% oil-free scroll pumps inside a sound-attenuating cabinet. Simplex models run 3 and 5 HP (single- or three-phase); multiplex systems combine two to six pumps for 10 to 60 HP and up to 187 CFM.

Each compressor has its own air-cooled aftercooler, inlet filtration with a replaceable element and internal vibration isolators. A 145 PSI high-pressure option is available on most models, and every system is UL/CSA certified. Made in the USA.

Standard features

  • 3–60 HP
  • 8.8–187 CFM @ 116 PSI
  • 145 PSI option
  • Simplex or multiplex
  • Sound-attenuating enclosure
  • UL / CSA certified
  • Made in the USA

Warranty

Powerex factory warranty and support are available. A guru will send current warranty terms with your quote.

Coverage Term
Factory warranty Powerex standard
Service Local service available on all brands

Use genuine Powerex parts and follow the maintenance schedule to keep coverage.
