- Flow
- 15.2 SCFM
- Rated at
- 100 PSI
- Motor
- 5 HP
- Duty
- 100%
Powerex SLAE Scroll Oilless Bare Pump
5 HP · 15.2 SCFM @ 100 PSI · bare pump
Some options are not offered with your earlier choices.
Mention part SLAE05E. A live expert confirms sizing and ship date.
Technical specifications
Showing SLAE05ERPM, pulley, drive and weight from the Powerex SLAE spec table (3 and 5 HP). Call to confirm the 10 HP pump price.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| HP | SCFM | Part # | From | From | |
|---|---|---|---|---|---|
| 3 HP | 8.8 @100 / 7.1 @145 | SLAE03EB | $4,453.68 | ||
| 5 HP | 15.2 @100 or 12.5 @145 | SLAE05E / SLAE05EHP | $5,811.68 | ||
| 7.5 HP | 21.1 @100 or 17 @145 | SLAE075 / SLAE075HP | $8,610.00 | ||
| 10 HP | 31.2 @100 | SLAE10 | $11,008.11 |

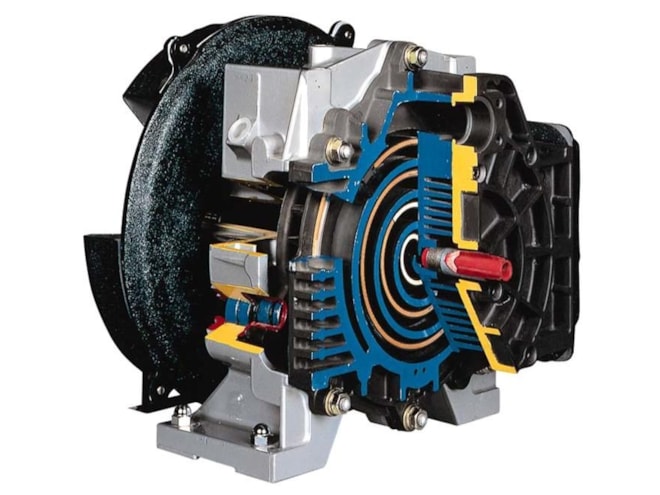

The heart of a Powerex scroll compressor
The Powerex SLAE is the oil-less scroll air end used in Powerex scroll compressors, sold as a bare pump in 3, 5, 7.5 and 10 HP. Its dynamically balanced design runs vibration-free at a continuous 100% duty cycle, with no oil separation, oil filtration or inlet valves.
Two identical spirals — one fixed, one orbiting 180° out of phase — trap air in crescent-shaped pockets that shrink as they move toward the center, discharging through the middle of the fixed scroll with no valves needed. Belt driven, with a 145 PSI high-pressure option. The 3 HP SLAE03EB covers both standard and high pressure.
Standard features
- 3, 5, 7.5 & 10 HP
- 116 PSI standard
- 145 PSI option
- 100% duty cycle
- No oil, no inlet valves
- Belt driven
- Meets NFPA 99
- Made in the USA
Warranty
Powerex factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Powerex standard |
| Service | Local service available on all brands |
Use genuine Powerex parts and follow the maintenance schedule to keep coverage.
