- Flow
- 15.2 CFM
- Max pressure
- 116 PSI
- Motor
- 5 HP
- Tank
- 60 gal

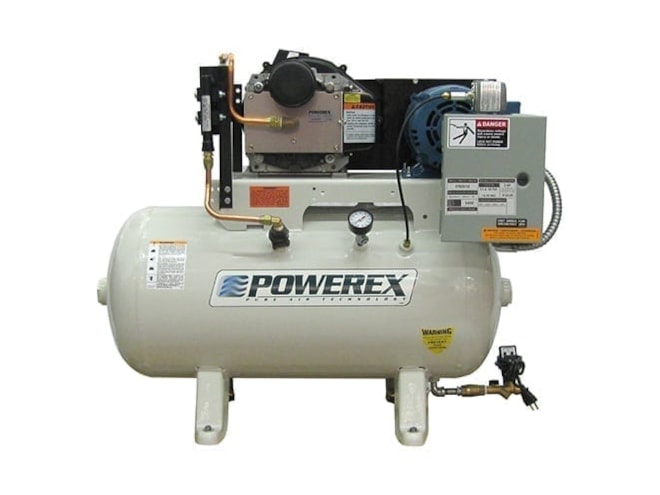

Powerex STS Oilless Scroll Tank Mounted System
15.2 CFM @ 116 PSI · 60 gal tank · 230V 3-phase
Some options are not offered with your earlier choices.
Mention part STS0502-3-2. A live expert confirms sizing and ship date.
Technical specifications
Showing STS0502-3-2Flow per Powerex at 116 PSI (standard) or 145 PSI (high pressure).
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| HP | CFM @116 | Tanks | Part # | From | From | |
|---|---|---|---|---|---|---|
| 3 HP | 8.8 | 30 / 60 gal | STS0301-2-2 | $7,440.10 | ||
| 5 HP | 15.2 | 30 / 60 / 80 gal | STS0501-2-2 | $8,730.88 | ||
| 7.5 HP | 23.1 | 120 / 200 / 240 gal | STS0754-2-2 | $12,299.84 | ||
| 10 HP | 31.2 | 120 / 200 / 240 gal | STS10B4-2-2 | $13,724.38 |
Clean, quiet, oil-free air on a tank
The Powerex STS is a 100% oil-less scroll simplex compressor mounted on its own receiver — 3 to 10 HP, delivering 8.8 to 31.2 CFM at 116 PSI, or 7.1 to 17 CFM with the 145 PSI high-pressure option.
Choose a 30 to 240 gallon tank, three-phase power (208, 230 or 460V) or single-phase on 3 and 5 HP, and add a refrigerated or desiccant dryer for a complete clean-air system. Made in the USA.
Standard features
- 3–10 HP
- 8.8–31.2 CFM @ 116 PSI
- 145 PSI option
- 30–240 gal tanks
- 1-phase on 3 & 5 HP
- Refrigerated or desiccant dryer
- Made in the USA
Warranty
Powerex factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Powerex standard |
| Service | Local service available on all brands |
Use genuine Powerex parts and follow the maintenance schedule to keep coverage.
