- Flow
- 118 SCFM
- Dew point
- +37.4°F
- Power
- 110V 1ph
- Refrigerant
- R513A

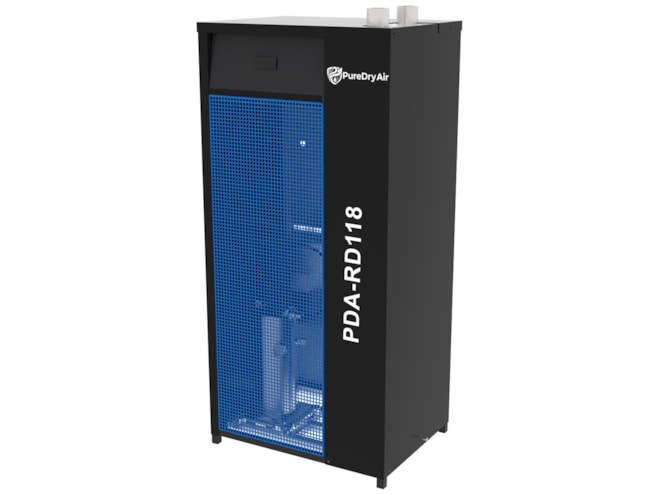

PureDry Air PDA-RD Series Non-Cycling Refrigerated Air Dryer
118 SCFM · +37.4°F dew point · 110V 1-phase 60 Hz
Voltage is set by size: 110V up to 118 SCFM, 220V for 176–470 SCFM, 460V 3-phase from 635 SCFM.
Mention part PDA-RD118. A live expert confirms sizing and ship date.
Technical specifications
Showing PDA-RD118Freight is quoted separately.
Compare sizes
Select a row to choose that size.
| Capacity | Voltage | Part # | Price | From | |
|---|---|---|---|---|---|
| 14 SCFM | 110V 1-phase 60 Hz | PDA-RD14 | $1,495.00 | ||
| 35 SCFM | 110V 1-phase 60 Hz | PDA-RD35 | $1,995.00 | ||
| 47 SCFM | 110V 1-phase 60 Hz | PDA-RD47 | $2,395.00 | ||
| 85 SCFM | 110V 1-phase 60 Hz | PDA-RD85 | $2,850.00 | ||
| 118 SCFM | 110V 1-phase 60 Hz | PDA-RD118 | $3,295.00 | ||
| 176 SCFM | 220V 1-phase 60 Hz | PDA-RD176 | $4,150.00 | ||
| 235 SCFM | 220V 1-phase 60 Hz | PDA-RD235 | $5,295.00 | ||
| 306 SCFM | 220V 1-phase 60 Hz | PDA-RD306 | $6,450.00 | ||
| 376 SCFM | 220V 1-phase 60 Hz | PDA-RD376 | $7,850.00 | ||
| 470 SCFM | 220V 1-phase 60 Hz | PDA-RD470 | $9,650.00 | ||
| 635 SCFM | 460V 3-phase 60 Hz | PDA-RD635 | $12,450.00 | ||
| 753 SCFM | 460V 3-phase 60 Hz | PDA-RD753 | $14,850.00 | ||
| 945 SCFM | 460V 3-phase 60 Hz | PDA-RD945 | $17,950.00 | ||
| 1,180 SCFM | 460V 3-phase 60 Hz | PDA-RD1180 | $21,500.00 | ||
| 1,420 SCFM | 460V 3-phase 60 Hz | PDA-RD1420 | $25,800.00 | ||
| 1,890 SCFM | 460V 3-phase 60 Hz | PDA-RD1890 | $33,500.00 |
Steady dry air, simple controls
The PureDry Air PDA-RD Series non-cycling refrigerated dryer covers 14 to 1,890 SCFM at a +37.4°F pressure dew point. A copper tube heat exchanger and R513A refrigerant keep performance steady across the range.
A microprocessor controller gives an alarm output for high and low dew point limits, and freeze protection shuts the dryer down and restarts it automatically. A time-controlled condensate drain is included. Voltage is set by size: 110V single-phase up to 118 SCFM, 220V single-phase from 176 to 470 SCFM, and 460V three-phase from 635 SCFM up.
Standard features
- 14–1,890 SCFM
- +37.4°F dew point
- Copper tube heat exchanger
- Microprocessor controller
- Dew point alarm output
- Freeze protection
- Timed drain included
- R513A refrigerant
Warranty
PureDry Air factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | PureDry Air standard |
| Support | Local service available |
Use genuine PureDry Air parts and service kits.
