- Capacity
- 15 CFM
- Connection
- 3/4" NPT
- Voltage
- 115/1/60
- Type
- Cycling

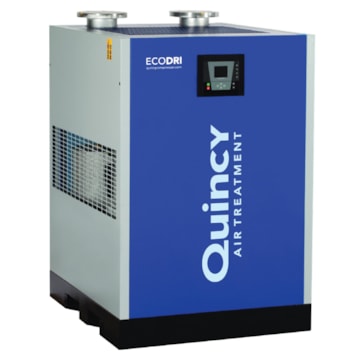

Quincy Compressor QED Cycling Refrigerated Air Dryer
15 CFM
Mention part QED-15. A live expert confirms sizing and ship date.
Technical specifications
Showing QED-15Part numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Capacity | Part # | From | From | |
|---|---|---|---|---|
| 15 CFM | QED-15 | $2,052.75 | ||
| 20 CFM | QED-20 | $2,568.70 | ||
| 30 CFM | QED-30 | $2,789.70 | ||
| 40 CFM | QED-40 | $3,191.75 | ||
| 50 CFM | QED-50 | $3,592.95 | ||
| 65 CFM | QED-65 | $4,340.10 | ||
| 85 CFM | QED-85 | $5,137.40 | ||
| 100 CFM | QED-100 | $5,603.20 | ||
| 125 CFM | QED-125 | $6,284.05 | ||
| 150 CFM | QED-150 | $7,116.20 | ||
| 200 CFM | QED-200 | $8,633.45 |
Cycling dryer that saves energy at part load
The Quincy Compressor QED series cycling refrigerated air dryer is energy efficient and available from 15 to 200 CFM capacity. The QED features rotary technology, few moving parts, a low noise level, low vibrations, and zero loss electronic drains. Rather than using a glycol bath for cooling, the QED series uses smart RH technology to ensure the air is dried to a non-corrosive RH level and protect against freezing conditions.
The cycling sensors automatically revert the mode of operation to non-cycling when freezing conditions are present. The Airlogic2 controller comes standard and responds to real-time sensor data to adjust the thermal core temperature, keeping compressed air relative humidity at 30%, well below the corrosion point. It offers remote monitoring, CAN communication, voltage-free contacts for remote alarm, auto restart, lowest air temperature, ambient temperature, relative humidity and a freezing alarm.
Standard features
- 15 to 200 CFM capacity
- 203 to 232 PSI max pressure rating
- Cycling operation with thermal core heat
- Zero-loss electronic drains
- Airlogic2 controller standard
- Smart RH technology keeps air at about 3
Warranty
Quincy factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Quincy standard |
| Service | Local service available on all brands |
Use genuine Quincy parts and follow the maintenance schedule to keep coverage.
