- Capacity
- 25 CFM
- Connection
- 1/2in NPT
- Voltage
- 115/1/60
- Inlet temp
- 180°F

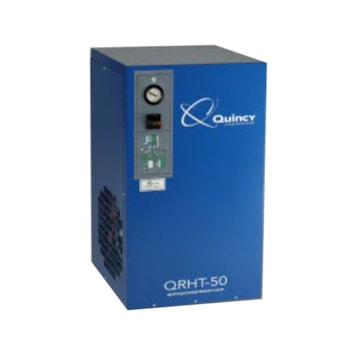

Quincy Compressor QRHT Series High Temperature Refrigerated Air Dryer
25 CFM
Mention part QRHT 25. A live expert confirms sizing and ship date.
Technical specifications
Showing QRHT 25Part numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Capacity | Part # | From | From | |
|---|---|---|---|---|
| 25 CFM | QRHT 25 | $3,065.00 | ||
| 50 CFM | QRHT 50 | $4,100.00 | ||
| 75 CFM | QRHT 75 | $5,539.00 | ||
| 100 CFM | QRHT 100 | $6,391.00 | ||
| 125 CFM | QRHT 125 | $7,013.00 |
Five components in one small footprint
The Quincy Compressor QRHT series high temperature refrigerated air dryer integrates five different components that perform separate functions. An air-cooled aftercooler, refrigerated dryer, moisture separator, Zero Loss drain, and coalescing filter work together to remove water, oil, and dirt from air to produce clean, dry, and filtered compressed air.
The QRHT series prevents damage to pneumatic tools, leads to fewer finished product defects, prevents "Fisheye" paint splotches, and eliminates air line purging. The air dryer is designed for reciprocating compressors and base mount rotary compressors without an after cooler.
Standard features
- 180°F inlet temperature
- 25 to 125 CFM capacity
- 232 psig maximum pressure
- 115/1/60 single phase
- 1/2, 3/4 or 1 in NPT connection
- EPA/SNAP compliant refrigerants
Warranty
Quincy factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Quincy standard |
| Service | Local service available on all brands |
Use genuine Quincy parts and follow the maintenance schedule to keep coverage.
