- Capacity
- 70 SCFM
- Connection
- 1" NPT
- Dew point
- -40°F

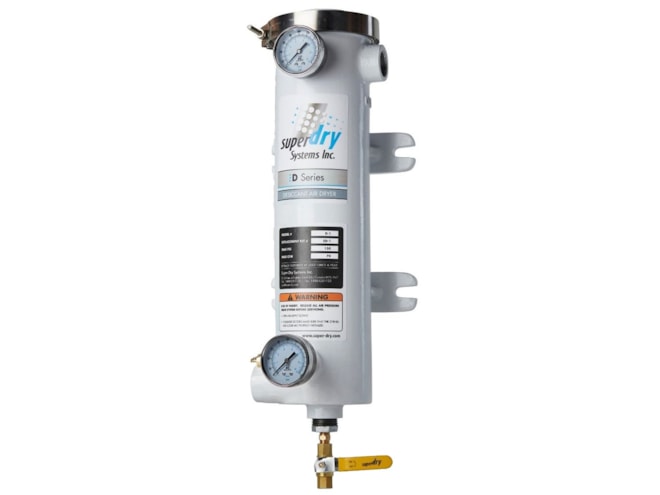

Super-Dry D-Series Desiccant Air Dryer
70 SCFM · Standard
Some options are not offered with your earlier choices.
Mention part 280-110. A live expert confirms sizing and ship date.
Technical specifications
Showing 280-110Part numbers and options confirmed when you order.
Compare sizes
Lowest price shown for each size. Select a row to configure it.
| Capacity | Part # | From | From | |
|---|---|---|---|---|
| 70 SCFM | 280-110 | $985.50 | ||
| 150 SCFM | 280-120 | $1,642.50 | ||
| 200 SCFM | 280-130 | $2,065.50 | ||
| 300 SCFM | 280-140 | $2,812.50 |
Point-of-use dry air, no power needed
The Super-Dry D-Series desiccant air dryer is a single tower unit designed for point-of-use and intermittent flow applications. The wet compressed air enters at the inlet is separated due to the off-set inlet creating centrifugal separation to trap water droplets, then passes around a polypropylene coalescer element, felt pads, and stainless-steel grids to remove solid particulates.
The air flows upward through a sewed filtration desiccant bag that acts as a sponge to absorb moisture. The air then flows through the second stage of filtration to eliminate any desiccant dust.
Standard features
- 70, 150, 200 and 300 SCFM models
- 300 SCFM available in a CRN configuratio
- 150 PSI max inlet pressure
- 100°F (38°C) max inlet temperature
- Pre-filled with desiccant cartridge
- Included pressure gauge, safety valve an
- Optional humidity gauge and replacement
Warranty
Super-Dry factory warranty and support are available. A guru will send current warranty terms with your quote.
| Coverage | Term |
|---|---|
| Factory warranty | Super-Dry standard |
| Service | Local service available on all brands |
Use genuine Super-Dry parts and follow the maintenance schedule to keep coverage.
